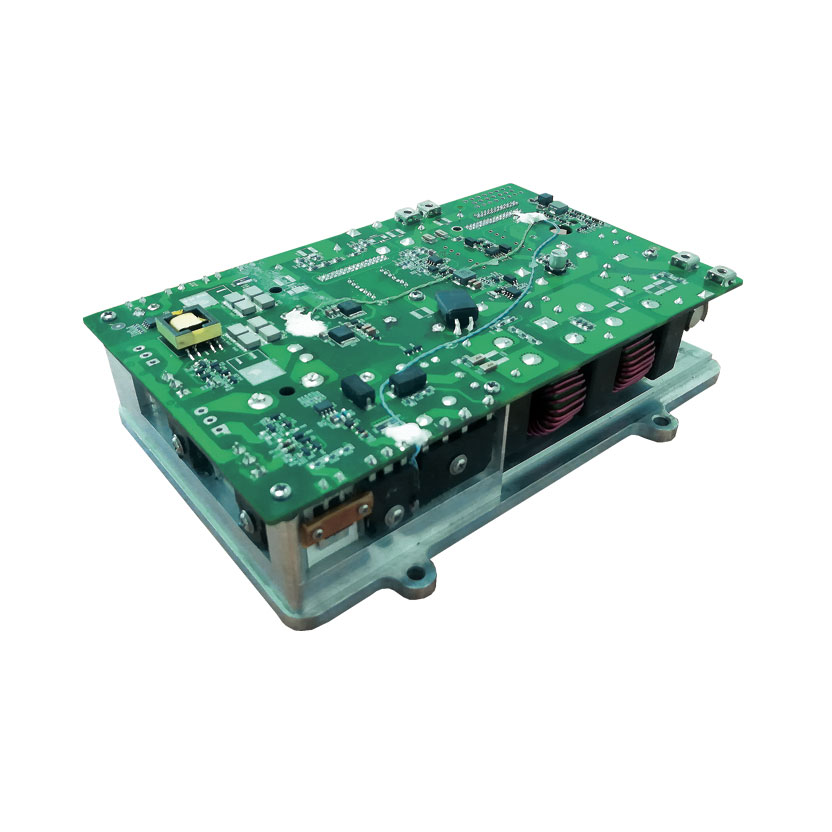

产品说明/Product introduction
主要特点 | Characteristics |
- 全网输入电压范围90~265V
宽输出电压范围:200~430V 90%以上部件为汽车级。 满足ISO26262 ASIL B 安全等级 全数字控制环路 水冷,可承受3.2bar水压 满足IP67/IP6K9K防护等级 全功能保护:输入过压欠压,输出过压欠压,输出过流,短路,过温保护等等 一体化散热技术 产品体积小,重量轻 EMC满足CISPR22,CISPR25,QC/T 895要求 可选配网络管理、Autosar架构 模块化设计,缩短产品研发周期
| Global input: 90~265V Widely output:200~430V 90% Automotive components Ful fill ISO26262 ASIL B Digital control loop Air cool or water cool IP67/IP6K9K Full protection:OVP,UVP,OCP,SC,OTP etc。 Integrated heat dissipation technology Low size, low profile EMC compliant with CISPR22,CISPR25,QC/T 895。 Network management, Autosar (optional) Modular design.
|
产品参数/Production parameters
类别/category | 技术指标名称/Items | 规格范围/Specification |
性能要求 Electrical parameter | 输入电压范围/Input voltage range | 90Vac -265Vac |
输入频率/Input frequency | 45~65Hz |
功率因数/Power factor | >0.99 @ 360V out put, 50 -100% load |
交流输入电流/Input current | Max. 16A |
交流输入冲击电流/Input rush current | Max. 6Arms |
直流输出电压/Output voltage | 200V - 430V |
低压输出/Output voltage(LV) | 12V |
输出功率/Output power | Max. 3300W |
高压输出电压误差/Tolerance of output voltage | ±1% |
纹波/Ripple of output voltage | 2% |
高压输出电流误差/Tolerance of output current | ±0.3A @ 12A output |
交流输入电压检测精度/Accuracy of input voltage | ±1% |
待机功耗/Power dissipation @shut down | <5mW |
效率/Eff. | >94% @ 400V output, 50-100% load |
输出过冲/Overshoot of output voltage | <10% |
输出电压上升时间/Rise time | < 5s |
电磁兼容性能EMC/EMC | IEC61000,CISPR 25 |
功能要求 Function | 保护功能/Protection | Yes |
限压功能/Voltage controllable | Yes |
限流功能/Current controllable | Yes |
通讯功能/CAN | Yes |
软件升级/SW flash | Yes |
安规/Safety | 安全等级/Safety | ISO 26262 ASIL B |
设计寿命/Design life | 设计寿命/Design life | 10年30万公里/10Years or 300k km |
