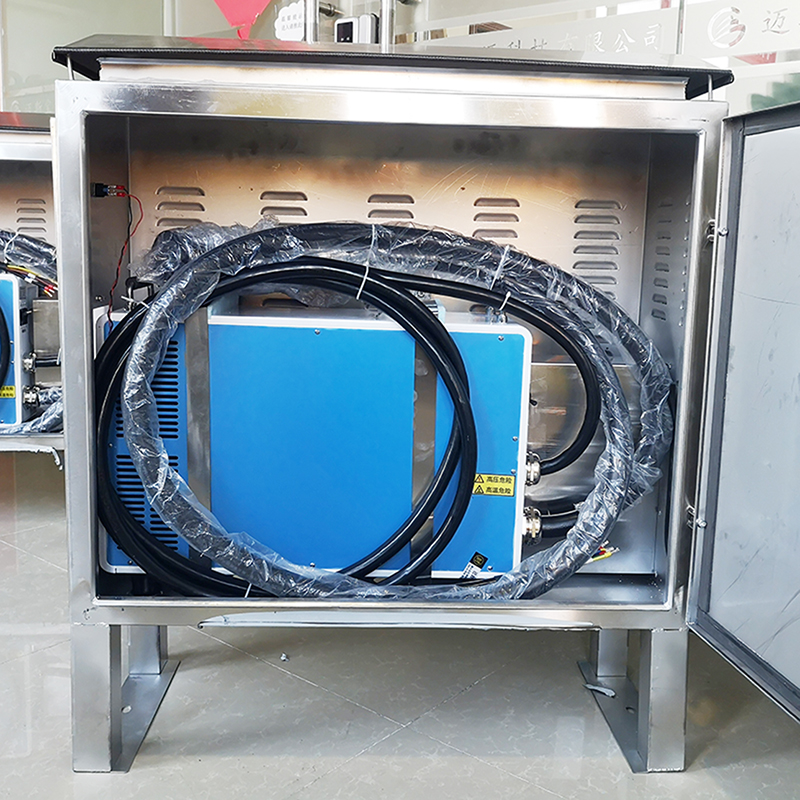

40KW移动式充电机充电桩

产品型号: 30750
产品功率: 40KW
输入电压: 260-475V
输入电流: 50A
输出电流: 66A/120A
输出电压: 200-750V
产品详情


产品说明/Product introduction

主要特点Characteristics
  • 我司生产的40KW便携式充电机,输入电压为380V,触屏显示,标配4.3寸显示屏,使用简便,额定输出功率30KW,具有防水防尘功能,多重安全防护,可选配有订制的防雨罩,适用户外移动使用。

  • 由监控模块、电源模块、防雷单元、电充接口、人机交互友好界面等组成。

  • 采用高性能充电模块,超宽充电范围,超满载工作效率。

  • 亦可根据车辆BMS参数来定制化生产。

  • The 40KW portable charger with input voltage of 380V, touch screen display, standard 4.3-inch display screen, easy to use, rated output power of 30KW, waterproof and dustproof function, multiple safety protection, can be selected with customized rainproof cover, suitable for outdoor mobile use.

  • It is composed of monitoring module, power module, lightning protection unit, charging interface, human-computer friendly interface and so on.

  • High performance charging module, super wide charging range, super full load working efficiency.

  • You can also customize the production according to the vehicle BMS parameters.



产品参数/Production parameters

项 目/content

参   数/main parameters

产品型号/model

MC40750

输入电压范围/Input Voltage

260-475V,380V(TYPE)

输入电流/Input current

50A

输入线长/Input cable lengths

5M线长可定制/5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable

输出功率/Output power

40KW

输出电压范围/Output voltage

200-750V

输出电流/Output current

标准:0-60A/恒功率:0-120A

充电枪线长/Output cable lengths

3M线长可定制/Support for customized

效率/Eff.

95%

辅助电源/Auxiliary power

12V/24V

工作温度/Operation temperature

-40~85℃,25℃(TYPE)

存储温度/Storage temperature

-40~85℃,25℃(TYPE)

防护等级/IP

IP43

尺寸大小/Size(mm)

570×190×350

整机重量/Weight(KG)

52KG
